Project Repository
The goal of this project is to implement a datapath in Verilog and calculate the moving average of a signal with a sliding window of length L, and run it on a Nexys A7-100T FPGA. The datapath will be compared to an implementation on Matlab/Octave. Originally, this project was done on Xilinx Vivado, but I wanted to experiment on designing an open-source flow that can be run anywhere using Nix.
Background
The sliding window algorithm computes the average from a length of data that is defined by a window length, L. The output of the algorithm for each input sample is the average over the window of the current sample and the L-1 previous samples.
For example, with an sliding window of L = 8, you will have an equation like so: y[n] = (x[n] + x[n-1] + ... + x[n-7]) / 8.
In the datapath, an input of various samples will have to be used. The output of the datapath testbench should result in a text file like so:
Input: 000000111101 | Output: 000000000000
Input: 000001000010 | Output: 000000000000
Input: 000000010111 | Output: 000000000000
Input: 000001001001 | Output: 000000000000
Input: 000001101100 | Output: 000000000000
Input: 000001000111 | Output: 000000000000
Input: 000001011110 | Output: 100101010100
Input: 000001000010 | Output: 001111110000
Input: 000001111110 | Output: 101111101100
Matlab/Octave
GNU Octave has a largely Matlab-compatible language. In this project, the Matlab code can be dropped into Octave with no issues.
The input data we get is a .mat file, containing the structure sample_data. Before we do anything, we need to first convert it to a .mem file so we can use the input data with out datapath testbench.
1% Import data
2load("input.mat", 'sample_data');
3
4% ----------- Save as .mem file ------------ %
5
6% two's complement bit pattern
7i32_sample_data = int32(int16(sample_data(:)));
8u32_sample_data = typecast(i32_sample_data, 'uint32');
9
10fid = fopen('input_data.mem','w');
11
12for k = 1:numel(u32_sample_data)
13 % 8 hex digits per line
14 fprintf(fid, '%08X\n', u32_sample_data(k));
15end
16
17fclose(fid);
The input_data.mem file looks something like this:
0000067B
00000683
0000067B
00000672
...
Here is the equation mentioned before, but implemented recursively:
1% Performs sliding window (moving avg) recursively
2function y = sliding_window(x, L)
3 x = x(:);
4 N = numel(x);
5 y = zeros(N, 1);
6 y(1) = x(1) / L;
7
8 for n = 2 : N
9 x_n_L = 0;
10 if n - L >= 1, x_n_L = x(n - L); end
11 y(n) = y(n - 1) + (x(n) - x_n_L) / L;
12 end
13end
We can then run the function for different window lengths. The following is a plot of the sample data and output data when the lengths are 8 and 4.
The plot shows how the output data waveforms are a little filtered or smoothened compared to the raw sample data.
The matlab code also outputs a text file, which we can use to compare with the Verilog datapath. Here are the first few lines:
Input: 00000000000000000000011001111011 | Output: 00000000000000000000000011001111
Input: 00000000000000000000011010000011 | Output: 00000000000000000000000110011111
Input: 00000000000000000000011001111011 | Output: 00000000000000000000001001101111
Input: 00000000000000000000011001110010 | Output: 00000000000000000000001100111101
Input: 00000000000000000000011001101001 | Output: 00000000000000000000010000001010
Verilog Simulation Software
As the point of this project is to use FOSS tools, the simulator isn’t vivado.
Icarus Verilog (iverilog)
This is our Verilog compiler. It compiles the RTL + testbench into a simulation executable (.vvp).
vvp
The runtime for Icarus Verilog. This runs the .vvp bytecode, and dumps data and waveforms.
gtkwave
The waveform viewer. This allows me to inspect the waveforms.
Verilog Datapath Simulation
The Verilog datapath was implemented non-recursively and parametrically. The full code is here.
Test Simulation
As for the simulation testbench, we need to first implement something small that tests our code, without having to use the large input data. We can test 7 samples (2, 3, 4, 5, 6, 8).
Our clock will be running at 100MHz. Here is the instantiated DUT:
1sliding_window #(
2 .WIDTH(WIDTH),
3 .L(L)
4) dut (
5 .clk (clk),
6 .rst (rst),
7 .in_valid (in_valid),
8 .in_sample (in_sample),
9 .out_valid (out_valid),
10 .out_avg (out_avg)
11);
We also need to manually dump data for our waveforms as we aren’t using Vivado.
1// Waveform dump
2initial begin
3 if (!$test$plusargs("NOVCD")) begin
4 $dumpfile("build/wave.vcd"); // make sure 'build/' exists
5 $dumpvars(0, tb_sliding_window_small); // dump whole TB hierarchy
6 end
7end
The full code can be found here.
Results
Here is the outputted text file:
Input: 00000000000000000000000000000010 | Output: 00000000000000000000000000000000
Input: 00000000000000000000000000000011 | Output: 00000000000000000000000000000001
Input: 00000000000000000000000000000100 | Output: 00000000000000000000000000000010
Input: 00000000000000000000000000000101 | Output: 00000000000000000000000000000011
Input: 00000000000000000000000000000110 | Output: 00000000000000000000000000000100
Input: 00000000000000000000000000000111 | Output: 00000000000000000000000000000101
Input: 00000000000000000000000000001000 | Output: 00000000000000000000000000000110

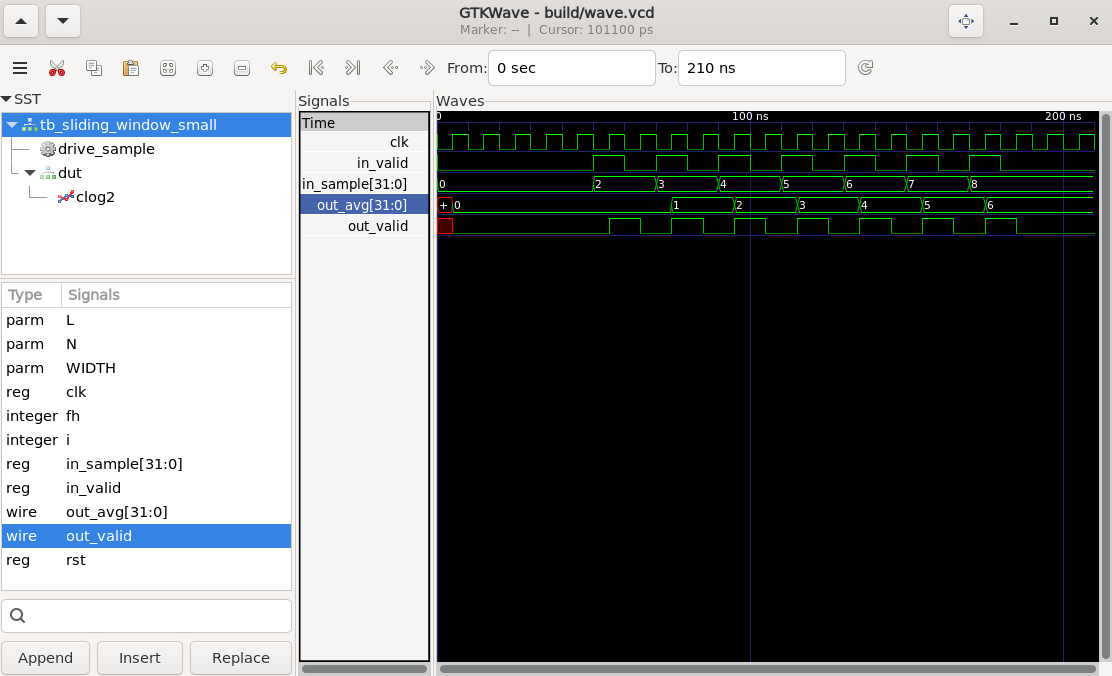

We can compare the data with the waveform:
Note
The waveforms and output data are all in decimal. There is no fixed-point or floating-point implemented here, so all the fractional parts are truncated.
Full Simulation
In our actual simulation, we will read in the .mem file outputted by the Matlab code into a ROM:
1reg signed [WIDTH-1:0] rom [0:N-1];
2
3initial begin
4 $readmemh("./tb/input_data.mem", rom);
5
6 // Waveform dump
7 if (!$test$plusargs("NOVCD")) begin
8 $dumpfile("build/wave.vcd");
9 $dumpvars(0, tb_sliding_window);
10 end
11end
Besides that, the testbench is very similar to the previous one.
Results
Here are the first few lines of the outputted text file:
Input: 00000000000000000000011001111011 | Output: 00000000000000000000000011001111
Input: 00000000000000000000011010000011 | Output: 00000000000000000000000110011111
Input: 00000000000000000000011001111011 | Output: 00000000000000000000001001101111
Input: 00000000000000000000011001110010 | Output: 00000000000000000000001100111101
Input: 00000000000000000000011001101001 | Output: 00000000000000000000010000001010

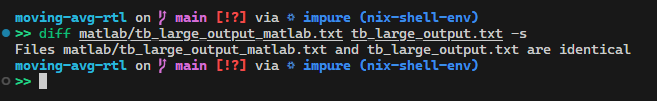

We can verify the datapath by performing a diff between the datapath output text file and the Matlab output text file. It should be exactly the same.

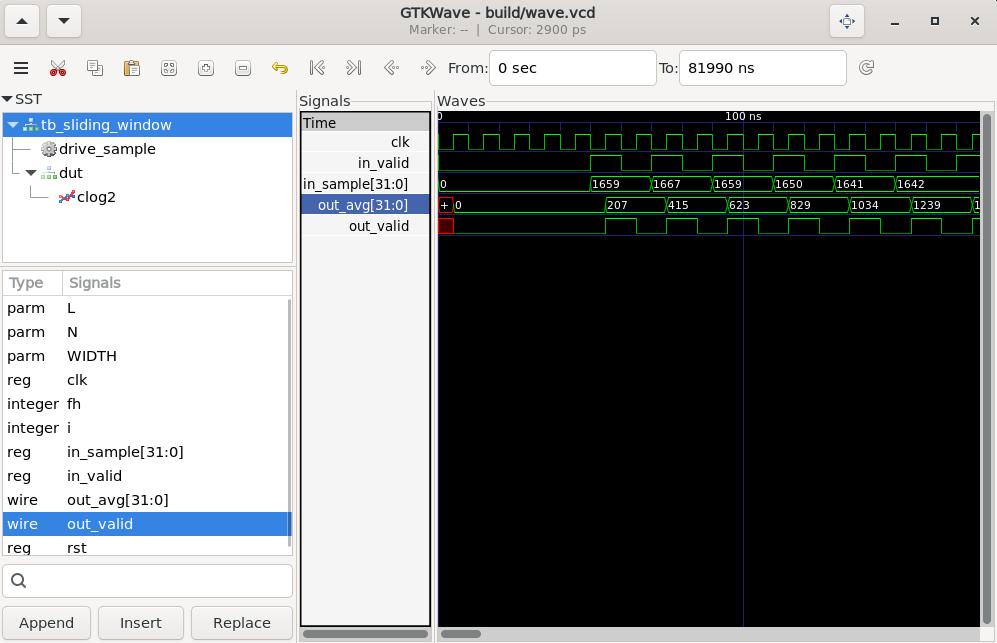

We can compare some of the data with the waveform, as both are very large:
Synthesis, PNR, and Uploading
Now, we can synthesize this and upload it to our Xilinx FPGA with FOSS tools.
yosys → nextpnr-xilinx → fasm2frames → xc7frames2bit → openFPGALoader
This will be the flow.
Top Module
Our current simulation testbench modules that are acting as top modules aren’t synthesizable. We need to design something that can run on an FPGA, and not as fast as the testbench. We can model our new top after the small testbench, but show the last 8 bits of the output every cycle (as the FPGA only has 8 LEDs in a neat row). We will still run this at 100MHz, but with a tick at 1Hz, so the LEDs can be noticed by the human eye.
Hence, we need to implement some sort of tick module.
1module tick_1hz #(
2 parameter integer CLK_HZ = 100000000,
3 parameter integer TICK_HZ = 1
4)(
5 input wire clk,
6 input wire rst, // active-high sync reset
7 output reg tick // 1-cycle pulse every 1 s
8);
9 localparam integer DIV = CLK_HZ / TICK_HZ;
10 // log2c(100000000) = 27
11 reg [26:0] cnt = 0;
12
13 always @(posedge clk) begin
14 if (rst) begin
15 cnt <= 0;
16 tick <= 0;
17 end else if (cnt == DIV-1) begin
18 cnt <= 0;
19 tick <= 1;
20 end else begin
21 cnt <= cnt + 1;
22 tick <= 0;
23 end
24 end
25endmodule
Note
The cnt register has a hardcoded width. Ideally, you’d want to implement a log2c function to calculate the width from the 100MHz value, but in this case I hardcoded it for convenience.
The rest of the module is similar to the testbench, except we assign the last 8 bits of out_avg to our LEDs. The full code is here
Constraints
We also need to map the clock and LED pins to the FPGA hardware pins.
1# Nexys A7-100T: 100 MHz system clock on E3 (LVCMOS33)
2set_property PACKAGE_PIN E3 [get_ports clk]
3set_property IOSTANDARD LVCMOS33 [get_ports clk]
4create_clock -period 10.000 [get_ports clk]
5
6# User LEDs
7set_property PACKAGE_PIN H17 [get_ports {leds[0]}]
8set_property IOSTANDARD LVCMOS33 [get_ports {leds[0]}]
9
10set_property PACKAGE_PIN K15 [get_ports {leds[1]}]
11set_property IOSTANDARD LVCMOS33 [get_ports {leds[1]}]
12
13set_property PACKAGE_PIN J13 [get_ports {leds[2]}]
14set_property IOSTANDARD LVCMOS33 [get_ports {leds[2]}]
15
16set_property PACKAGE_PIN N14 [get_ports {leds[3]}]
17set_property IOSTANDARD LVCMOS33 [get_ports {leds[3]}]
18
19set_property PACKAGE_PIN R18 [get_ports {leds[4]}]
20set_property IOSTANDARD LVCMOS33 [get_ports {leds[4]}]
21
22set_property PACKAGE_PIN V17 [get_ports {leds[5]}]
23set_property IOSTANDARD LVCMOS33 [get_ports {leds[5]}]
24
25set_property PACKAGE_PIN U17 [get_ports {leds[6]}]
26set_property IOSTANDARD LVCMOS33 [get_ports {leds[6]}]
27
28set_property PACKAGE_PIN U16 [get_ports {leds[7]}]
29set_property IOSTANDARD LVCMOS33 [get_ports {leds[7]}]
Synthesis Report
Yosys generates a synthesis report after running. Here is the report for the datapath:
=== design hierarchy ===
top 1
sliding_window 1
tick_1hz 1
Number of wires: 151
Number of wire bits: 1084
Number of public wires: 31
Number of public wire bits: 453
Number of ports: 11
Number of port bits: 80
Number of memories: 0
Number of memory bits: 0
Number of processes: 0
Number of cells: 444
BUFG 1
CARRY4 19
FDRE 212
IBUF 1
INV 5
LUT2 69
LUT3 35
LUT4 8
LUT5 5
LUT6 72
MUXF7 6
MUXF8 3
OBUF 8
Estimated number of LCs: 133
PNR
Here is the timing and utilization statistics from nextpnr-xilinx:
== Timing ==
Info: Max frequency for clock '$iopadmap$clk': 102.51 MHz (PASS at 100.00 MHz)
Info: Slack histogram:
Info: Critical path report for clock '$iopadmap$clk' (posedge -> posedge):
Info: Max frequency for clock '$iopadmap$clk': 155.35 MHz (PASS at 100.00 MHz)
Info: Slack histogram:
== Utilization ==
Info: Device utilisation:
Info: SLICE_LUTX: 312/126800 0%
Info: SLICE_FFX: 212/126800 0%
Info: CARRY4: 19/15850 0%
Info: PSEUDO_GND: 1/30932 0%
Info: PSEUDO_VCC: 1/30932 0%
Info: HARD0: 0/ 2376 0%
Info: RAMB18E1: 0/ 270 0%
Info: FIFO18E1: 0/ 135 0%
Info: RAMBFIFO36E1: 0/ 135 0%
Info: RAMB36E1: 0/ 135 0%
Info: DSP48E1: 0/ 240 0%
Info: PAD: 9/ 630 1%
Info: IOB33M_OUTBUF: 0/ 144 0%
Info: IOB33S_OUTBUF: 0/ 144 0%
Info: IOB33_OUTBUF: 8/ 300 2%
Info: IOB33M_INBUF_EN: 0/ 144 0%
Info: IOB33S_INBUF_EN: 0/ 144 0%
Info: IOB33_INBUF_EN: 1/ 300 0%
Info: IOB33M_TERM_OVERRIDE: 0/ 144 0%
Info: IOB33S_TERM_OVERRIDE: 0/ 144 0%
Info: IOB33_TERM_OVERRIDE: 0/ 300 0%
Info: PULL_OR_KEEP1: 0/ 588 0%
Info: IDELAYE2: 0/ 300 0%
Info: OLOGICE3_TFF: 0/ 300 0%
Info: OLOGICE3_OUTFF: 0/ 300 0%
Info: OLOGICE3_MISR: 0/ 300 0%
Info: OSERDESE2: 0/ 300 0%
Info: ILOGICE3_IFF: 0/ 300 0%
Info: ILOGICE3_ZHOLD_DELAY: 0/ 300 0%
Info: ISERDESE2: 0/ 300 0%
Info: BUFIO: 0/ 24 0%
Info: IDELAYCTRL: 0/ 6 0%
Info: BUFGCTRL: 1/ 32 3%
Info: BSCAN: 0/ 4 0%
Info: BUFG: 0/ 32 0%
Info: BUFHCE: 0/ 96 0%
Info: DCIRESET: 0/ 1 0%
Info: DNA_PORT: 0/ 1 0%
Info: EFUSE_USR: 0/ 1 0%
Info: FRAME_ECC: 0/ 1 0%
Info: GTPE2_CHANNEL: 0/ 8 0%
Info: GTPE2_COMMON: 0/ 2 0%
Info: IBUFDS_GTE2: 0/ 4 0%
Info: ICAP: 0/ 2 0%
Info: INVERTER: 0/ 144 0%
Info: MMCME2_ADV: 0/ 6 0%
Info: OLOGICE2_TFF: 0/ 300 0%
Info: OLOGICE2_OUTFF: 0/ 300 0%
Info: PLLE2_ADV: 0/ 6 0%
Info: SELMUX2_1: 9/48750 0%
Info: STARTUP: 0/ 1 0%
Info: USR_ACCESS: 0/ 1 0%
Info: BUFFER: 0/ 42 0%
Info: ILOGICE2_IFF: 0/ 300 0%
Info: OLOGICE2_MISR: 0/ 300 0%
Unfortunately, the nextpnr gui is really slow when loading the PNR for a big FPGA like the Artix7, while also not supporting it officially.
Uploading
As I am using NixOS-WSL for all development, I had to use usbipd to do a “usb passthrough” for my FPGA.
Results

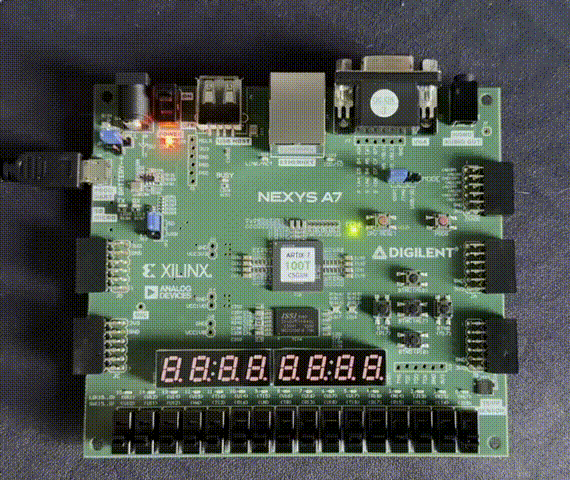

The FPGA blinks the last 7 bits of the outputs from the small testbench, and can be verified by looking at the output text file from the earlier iverilog simulator:
Output: 00000000000000000000000000000000
Output: 00000000000000000000000000000001
Output: 00000000000000000000000000000010
Output: 00000000000000000000000000000011
Output: 00000000000000000000000000000100
Output: 00000000000000000000000000000101
